DVR features-functions

Here you can find information about this series DVR features and functions, as well as a detailed menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

1 . Electrical safety

All installation and operation here should conform to local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

2 . Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

3 . Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation. Do not place objects on the DVR

4 . Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are nor liable for any problems caused by unauthorized modifications or attempted repair.

5 . Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components listed

below are included:

One power cable

One Ethernet cable

Four HDD cables

Alarm & relay terminal blocks

Extensional cable(for audio, loop & matrix)

One remote control(including the battery)

One USB mouse

One CD(including DVR manual, client & small tools)

Warranty card

A package of installation fittings

Contact your local retailer ASAP if something is missing in your package.

Note: Any changes of this manual made to the actual product are subject to no further notification.

1 FEATURES AND SPECIFICATIONS

1.1 Features

This series DVR has the following features:

H.264 compression algorithm ideal for standalone DVR

Real-time live display up to 8 cameras, 200/240fps recording for CIF, 2CIF& 4CIF

Pentaplex function: live, recording, playback, backup & remote access Full D1 real-time recording and playback for each channel. Dual encoding streams supported, flexible for network transmission. 8 HDDs supported & CD-RW/DVD-RW supported

Multiple control methods: front panel, IR remote controller, keyboard, USB mouse and network keyboard.

Smart video detection: motion detection, camera blank, video loss. Smart camera settings: privacy masking, camera lock, color setting, and title display

Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with our Speed Dome, 3D intelligent positioning function supported. Easy backup methods: USB devices, CD-RW/DVD-RW & network download Alarm triggering screen tips, buzzer, PTZ preset, e-mail, FTP upload. Smart HDDs Management: non-working HDD hibernation, HDD faulty alarm, Raid function.

Powerful network software: built-in web server, EPSS. Networking access for remote live viewing, recording, playback, setting, system status, event log, e-mail & ftp function.

1.2 Specifications
Model
DVR0404/0804HBE-S	4/8 channel audio/video basic model
DVR0404/0804HBEH-S	4/8 channel loop and matrix combination model
DVR0404/0804HBEH-S	4/8 channel loop matrix and audio/video model
System
Main Processor	High performance embedded microprocessor
Operating System	Embedded LINUX
System Resources	Pentaplex function: live, recording, playback, backup &
	remote access
User Interface	GUI, on-screen menu tips.
Control Device	Front panel, USB mouse, Keyboard, IR remote
	control, network keyboard,.
Input Method	Numeral/Character/Denotation
System Status	HDD status, data stream statistics, log record, bios
	version, on-line user etc.
Video

Video Input

4/8 Channel, BNC, 1.0Vp-p, 750, looping(optional),

Video Output

Video Standards

Video Compression Video Resolution

matrix output

2-channel TV output BNC, 1.0Vp- p, 750,1 VGA output PAL ( 625Line , 50f/s ), NTSC ( 525Line , 60f/s )

H.264 Format D1(4CIF)

2CIF

QCIF

NTSC

704 * 480 704 *240 352* 240 176*120

704 * 576 704 * 288

352*288

176*144

Video Recording

Video Display Split Tour Display Image Quality Privacy Masking

Camera Lock Camera Adjustment Video Information

TV Output Adjustment

Audio

Audio Input

Bi-directional Audio Input Audio Output Audio Compression

Video Detection & Alarm

Motion Detection

Video Loss Camera masking Alarm Input

Relay output Hard Disk

Hard Disk

D1/2CIF/CIF/QCIF: PAL 1f/s-25f/s NTSC 1f/s-30f/s ;

Full and multiple screen display, 1 / 4 / 8 /9 Support

1~6 level (level 6 is the best)

Self-defined four-sided zone for privacy masking for each camera

Camera locked for users Adjust color according to different time period Camera title, time, video loss, camera lock, motion detection, recording Adjust TV output color & display zone

4/8 channel, BNC, 200-2800mV, 30KQ 1-channel, BNC, 200-2800mV, 30KQ 1-channel, BNC, 200-3000mv, 5KQ

ADPCM

Zones: PAL 396 (22*18)/NTSC 330(22*15) detection zones

Sensitivity: 1~6 (level 6 is highest) Trigger recording, PTZ movement, tour, alarm, e-mail &

Trigger recording, PTZ movement, tour, alarm, e-mail &

Trigger recording, PTZ movement, tour, alarm, e-mail

& FTP

4/8 channel, programmable, ground, manual open/closed

Trigger recording, PTZ movement, tour, alarm, e-mail &

6-channel, 30VDC, 1A, NO/NC, form-C, 8 SATA ports, 8 HDDs supported.

Space Occupation

Audio : 14.4MB/H Video :56~800MB/H

HDD Management

Record, Playback &

Recording Mode

Recording Priority Recording Interval Overwrite Mode Raid Function Search Mode

Playback

Digital Zoom Backup Mode

Network

Interface

Network Functions Remote operation

Auxiliary Interface

USB Interface

RS232 RS485

Environmental

Power Supply Power Consumption

Working Temperature

Working Humidity

Atmosphere Pressure

Dimension

Weight

Mounting

Hard disk hibernation technology, HDD faulty alarm & Raid (Redundancy)

Backup

Manual, continuous, video detection (including motion detection, camera masking, video loss), Alarm Manual >Alarm >Video Detection >Continuous.

1 to 120 minutes (default: 60 minutes) Support Support

Time/Date, Alarm, Motion Detection & exact search (accurate to second)

1-channel playback, Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection.

Selected zone can zoom into full screen during playback

Flash disk/ USB HDD/ USB CD-RW/DVD-RW/ built-in IDE Burner/ network download

2 RJ-45 Port (10/100M) TCP/IP, DHCP, DDNS, PPPoE, E-mail, FTP Monitor, PTZ control, playback, system setting, file download, log information

Two USB 2.0 ports, 1 for mouse control, 1 for backup. Keyboard, PC communication PTZ control

220V 50Hz / 110V 60Hz

25W/30W

-10~ + 55 10%~90%

86kpa~106kpa

2U, 440mmx460mmx89mm (W*D*H)

7.0KG

Desktop or rack

Note: Comparisons

Model Audio Input Loop Output Matrix Output Bidirectional Talk Input

DVR0404HBEH-S 4-channel 4-channel 1-channel 1-channel DVR0804HBEH-S 4-channel 8-channel 1-channel 1-channel DVR0404HBE-S 4-channel N/A N/A 1-channel

DVR0804HBE-S 8-channel N/A N/A 1-channel

DVR0804HBEL-S N/A 8-channel 4-channel N/A

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first.

2.1 Front Panel

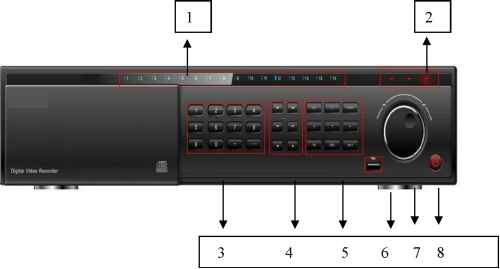

This series DVR has two different front panels. You can refer to Figure 2-1 and Figure 2-2.

Figure 2-1

Name	Icon	Function
Power button	POWER	Power button, press this button for three seconds to shut down DVR.
Power indication light		Power indication light
		In preview interface(no other menu), press this button for three seconds, can switch between TV/VGA output(HD1 series DVR has three modesLTV/VGA/60Hz LCD)
Shift		In textbox, click this button to switch between numeral, English(Small/Capitalized),donation, Chinese and etc.
		Open/close tour
numeral keys 0-9		Input password, switch channel and input numeral.
Input numeral more than10		When you need to input numeral more than 9. You can follow the steps below, click the first key number and then the next. For example, input 123, click numeral 1 and then 2 and click 3(continuously).
Up/down		Activate current control, modify setup, increase/decrease numeral, assistant function such as PTZ menu.
Left/right		shift current activated control, When playback, click these buttons to control playback bar.
		Close upper interface or controls.
Enter	ENTER	confirm operation

		Go to default button
		Go to main menu
Record		Manually stop/start recording, working with direction keys or numeral keys,
Slow play		Multiple slow play speeds or normal playback
		One-window monitor mode, click this button to display assistant function: PTZ control and image color. In PTZ menu, shift PTZ control menu.
		Backspace function: in numeral control or text control, it can delete the previous character before the cursor.
Assistant		In motion detection setup, working with Fn and direction keys to realize setup.
		In HDD information menu, switch between HDD record time or other information(Menu prompt)
		Realize other special functions
Fast play		Various fast speeds and normal playback.
Play previous		In playback mode, playback the previous video In menu setup, go to upper ward of the dropdown list.
Reverse/Pause		In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.
Play Next	►1	In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.
Play/Pause		Reverse playback or paused mode, click this button to realize normal playback In normal playback click this button to pause playback In pause mode, click this button to resume playback
		In real-time monitor mode, click this button to enter video search menu.
USB port		To connect USB storage device, USB mouse or USB CD-ROM
Channel indication light		When DVR is recording this lamp turns on.
Standby indication light		When DVR is standing by, this lamp turns on.
Remote control signal receiver		To receive signals from remote control

Function indication light
Window switch	MULT	Switch between one-window and multiple-window display modes.
		confirm current operation
Enter	ENTER	go to default button
		Go to main menu
Cancel		Close upper interface or controls.
Shuttle(outer ring)		In real-time monitor mode it works as left/right direction key. Playback mode, counter clockwise to forward and clock wise to backward
Jog(inner dial)		Up/down direction key. Playback mode, turn the inner dial to realized frame by frame playback. (only applies to some version.)

Figure 2-2

Name	Icon	Function
Channel indication light		When DVR is recording this lamp turns on.
Standby indication light		When DVR is standing by, this lamp turns on.
Remote control signal receiver		To receive signals from remote control
Function indication light
Shift		In preview interface(no other menu), press this button for three seconds, can switch between TV/VGA output(HD1 series DVR has three modesLTV/VGA/60Hz LCD)

		In textbox, click this button to switch between numeral, English(Small/Capitalized),donation, Chinese and etc.
		Open/close tour
numeral keys 0-9		Input password, switch channel and input numeral.
Input numeral more than10		When you need to input numeral more than 9. You can follow the steps below: click the first key number and then the next. For example, input 123, click numeral 1 and then 2 and click 3 (continuously).
Slow play		Multiple slow play speeds or normal playback
Fast play		Various fast speeds and normal playback.
Play previous		In playback mode, playback the previous video In menu setup, go to upper ward of the dropdown list.
Reverse/Pause		In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.
Play Next	►1	In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.
Play/Pause	► M	Reverse playback or paused mode, click this button to realize normal playback In normal playback click this button to pause playback In pause mode, click this button to resume playback
		In real-time monitor mode, click this button to enter video search menu
Up/down		Activate current control, modify setup, increase/decrease numeral, assistant function such as PTZ menu.
Left/right	4. ►	shift current activated control, When playback, click these buttons to control playback bar.
Cancel		Close upper interface or controls.
		confirm operation
Enter	ENTER	Go to default button
		Go to main menu
Record		Manually stop/start recording, working with direction keys or numeral keys.
Window switch	MULT	Switch between one-window and multiple-window display modes.
Assistant		One-window monitor mode, click this button to display assistant function: PTZ control and image color. In PTZ menu, shift PTZ control menu.
