NUUO headquarter is located in the Innovation Incubation Center of National Taiwan University (NTU) in Taipei. A strong cohesive team of over 150 professionals includes top-notch research and development engineers, efficient client-care service engineers, multicultural account executives, marketing and public relations managers. NUUO is well known in the security field for its reliable performance, prompt service and innovative spirit.

NUUO - Your Best Choice

Total Solution Provider

From CCTV to IP cameras, from PC-based to Linux-embedded servers, from small-scale to large-scale installations, NUUOs full product line provides the comprehensive total solution.

Company Information

Open Platform

Our commitment to open platform has achieved the result in integration with over 65 leading brands of IP cameras and 1500 models, allowing our clients to enjoy the most economical option. We also continue seeking integration with partners in license plate recognition(LPR), access control, video analytics, storageetc., to bring out the best value for our clients.

Ease of Use

NUUO provides customers with professional functionality in an user-friendly environment. NUUO products are easy to install, easy to learn and easy to use. All products are based on the design of Graphical User Interface (GUI) with intuitive use concept in mind, saving the cost and effort for all customers.

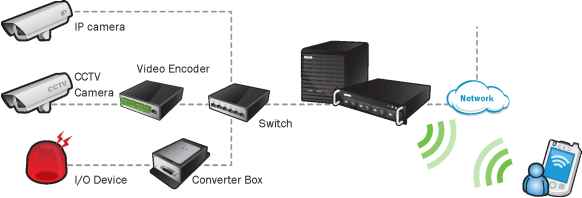

NUUO Solution Families

Crystal Family

NUUO Crystal Family solutions provide high efficiency megapixel recording and management platform. It utilizes NuClient which is a simple to operate yet powerful remote client that is compatible with both Mac and Windows operating systems.

IP Camera

Video Encoder

Linux embedded

Rack Server

Tower Server

NuClient

Software and Web Compatible with both Mac and Windows operating systems. Users can view and playback cameras from multiple servers seamlessly

i Viewer

Mobile App

View video and control I/O devices directly from your mobile phone. #iPad/iPhone iBlackBerry c.n!s,=

CCTV Camera

Mainconsole Family

NUUO Mainconsole Family is a truly complete Tri-Brid recording and management platform (IP, HD-SDI, SD-CCTV). It offers unparallel freedom in system design and advanced feature sets to satisfy diverse project requirements.

Unlimited Matrix Wall (Video wall)

Centralized multi-layer E-map

Instant alarm and event management

Advanced alarm search and report tool

Windows-based / Software only

Smart Guard embedded analytics

3rd Party (LPR / Access Control / POS)

Direct server view / playback available

IP Camera

HD-CCTV (SDI) Camera SD-CCTV Camera

Video Encoder

Linux embedded

Space-saving

POS

/ Remote Client \

( Free ) \

CCTV Camera

IP Camera

Video Encoder

CCTV Camera

Remote Live Viewer / Remote Playback iViewer

Software and Web

Instant playback access and simultaneous live view from any remote Mainconsole and NVRmini 2

Mobile App

View video and control I/O devices directly from your mobile phone.

#iPad/iPhone :В1аскВепу JSi>

Power. Speed. Redefined

Linux-embedded F.R.

250Mbps RAID 0,1,5, Command

Optimized throughput

Centralized

E-Map

Event 400 ch (live) Image Fusion Twin Client

Respond 100 ch (playback)

Win / Mac Client Browser

Mobile Apps tiPad/IPhone ,g,

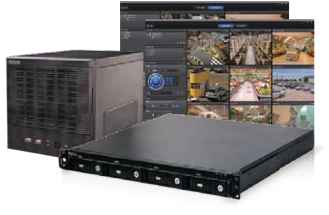

Design Highlights

Megapixel Recording Powerhouse

NUUO Titan NVR utilizes a redefined recording engine named File Ring. File Ring is engineered from scratch to handle high megapixel recordings by changing how hard drives store and retrieve video data. It can process large amount of data throughput boosting Titans recording performance to 64 2 - Megapixel cameras (H.264, 15 fps, moderate traffic).

5-Megapixel

recording utilizing F.R. Mega

ie00 .2

0 Kbps

Optimized recording engine

Central Remote Management

Titan NVR is built with highly efficient data and event management architecture. User can select smaller bandwidth profile for remote viewing to eliminate internet bottlenecks without affecting the recorded videos.

In addition, Titan is equipped with NUUO Command Chain Technology which can synchronize user accounts and critical events across 100 servers, 400 channel live views and 100 channel playback simultaneously.

Turn, Scale and Stitch Cameras Together

Experience a world without camera dead angles and narrow hallway views. NUUO Image Fusion Technology can manipulate camera views by changing its viewing angle and image size make viewing easier in both live view and playback. Moreover, users can stitch multiple cameras together to form a unified single view from up to 10 different cameras.

шшошш шшошш

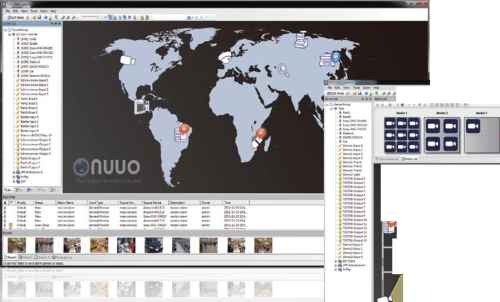

Centralized E-Map with video popup and tool bar for users to quickly access commonly used functions

Image Fusion combines camera 1 to 5 into a single view for easier viewing

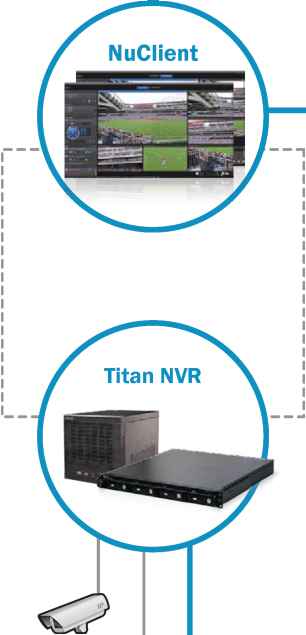

System Architecture Titan NVR

NuClient (Software) \ Л NuClient (Web)

IViewer (Mobile App)

Feature Highlights

Windows and Mac compatible

Manage up to 100 servers, 400 channels live view and 100 channels playback simultaneously.

NUUO Image Fusion Technology - stitch up to 10 cameras together to form a consecutive single view for easier viewing

Immervision Enabled 360° PTZ

Support Stream Profile for remote live view bandwidth control (Original / 300 kbps / 100 kbps)

Digital and Optical PTZ

Remote server configuration

Centralized Interactive E-map

Centralized I/O Panel and Event Panel

Public View and Private View for each user

View Tour to loop through selected Views

Instant Playback

Save video clips into AVI, ASF or MOV formats

Intelligent Search in playback to quickly find the subject of interest

Twin Clients to support identical, full featured software client and web client

Joystick support

Full SDK support

Specification

*Max recording throughput (250 Mbps): Approx. 64ch 5-Megapixel H.264 cameras at 10 fps when server is streaming out 16 channels of live video without playback. Optimal recording throughput (150 Mbps): Approx. 64ch 2-Megapixel H.264 cameras at 15 fps when server is streaming out 128 channels of live video and 16 channel playback.

у^щщ I тщ

Centralized Matrix Wall

Design Highlights

Designed to simplify and organize the central monitoring needs of security stations. Matrix Wall features an intuitive drag and drop system with advanced touring options (by camera, by view, by alarm). With just a single mouse and keyboard, officers can easily view and control hundreds of cameras on multiple monitors.

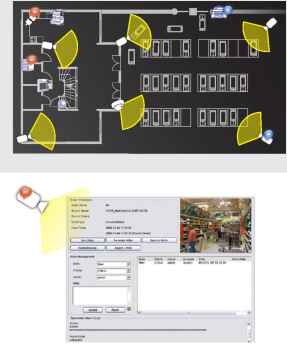

Centralized E-Map

Place and control cameras, I/O, POS, LPR and access control devices from any Mainconsole Family recorders directly on your customized, multi-layered E-Map. Simply click on a camera on the E-Map to access its popup video. Click on an output device to trigger an alarm. Click on an alert bubble to manage open events. And, we are just getting started.

Centralized Management

Notify, track, store and search for thousands of events from over 1,000 cameras and their recording servers from anywhere in the world. And do it without really doing it. Let the software filter out the critical server events, camera events, I/O, POS, LPR and access control events reliably around the clock. Owning an organized and efficient central control room has never been easier.

System Architecture

CMS Client

(Interactive E-Map and Matrix Wall Control)

CMS Matrix Wall

(Central viewing)

CMS Server

(Store and distribute events)

NVRmini 2 HD/SD Capture Card Hybrid Appliance

Unlimited Sites

IP / CCTV Camera

I / O Device

Access Control

Centralized Server Management

Supports over 1,000 cameras, I/O, POS, LPR and access control devices from multiple servers

Detailed event management and report system

57 types of event and alarm conditions

5 levels of alarm priorities

Emergency recording to central control room

Advanced data-mining and event search tool

Build-in remote desktop tool

Windows Active Directory

Users and user groups with independent privileges

Schedule profile (User, Event)

Auto backup

Two-way audio

Feature Highlights

Centralized Matrix Wall

Unlimited Matrix Wall stations

Display up to 64 channels per Matrix Wall monitor

Matrix Wall control panel

Simple drag and drop operation

View tour, camera tour and alarm tour

View profiles

PTZ support

Centralized E-Map

Unlimited layers

Direct control of all devices (camera, I/O, POS, LPR and doors) from all Mainconsole Family recorders

E-Map popup window for alarm, live view and playback

Remote backup and video clip exports

Instant playback and event playback

Joystick and keyboard support

CMS Part Number

Mainconsole

IP, HD-CCTV and SD-CCTV Cameras

E-map

12SCH Remote Live View

Digital PTZ

Stream Profile & Transcoding

Disk Load Balancing

Smart Search

Multi-Platform Mobile Clients

Smart Guard

Embedded Analytics

Access Control

Privacy Mask

Windows Active Directory

Auto Back-up 10 Alarm

Responses

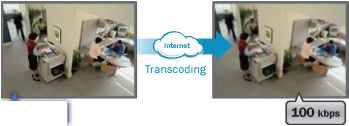

Transcoding

Design Highlights

Local Recording

Remote Viewing

Record and stream with different resolution and frame rate. You can transcode high bandwidth video streams into a much lower bandwidth stream for internet viewing. Enjoy every pixel that you paid for regardless if its IP megapixel or HD-SDI analog cameras.

5,300 kbps

*Actual bandwidth varies by scene complexity.

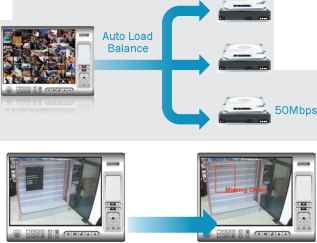

Auto Load Balance and Auto Backup

Auto load balance increases the data writing and reading efficiency to optimize HDD recording performance. The recorded data can be backed up automatically to external storages, including DAS, SAN, iSCSI, following pre-defined schedule.

Embedded Analytics

Safe guard your properties with 6 Smart Guard video events, 14 POS events, digital input events and 4 system events. Keep track of the traffic with build-in counting application. And just lay back and enjoy the free ride.

80Mbps

50Mbps

Smart Guard: Missing Object Detection

Mainconsole

IP, HD-CCTV and SD-CCTV Cameras

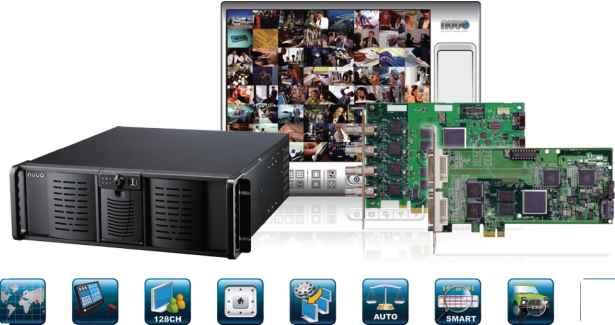

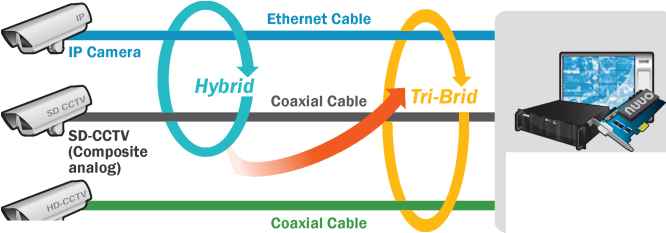

Tri-Brid Solution

HD-CCTV (SDI)

Customize your Tri-Brid server with 6000S, 7000S and 8000 cards anyway you like.

Feature Highlights

POS , I/O device , LPR and access control integration

Smart Guard detection of 6 events with 10 instant responses

Counting application

Playback intelligent search

Windows Active Directory

Privacy Mask

iPhone, iPad, Android and Blackberry apps

E-map

Digital watermark

Boost recording

Edge motion detection from network camera*

Auto backup

Digital PTZ and camera multi-view

Friendly GUI recording schedule

Two-way audio

Immervision Enabled 360° PTZ

*Check http: support.nuuo.com for Mainconsole camera support list

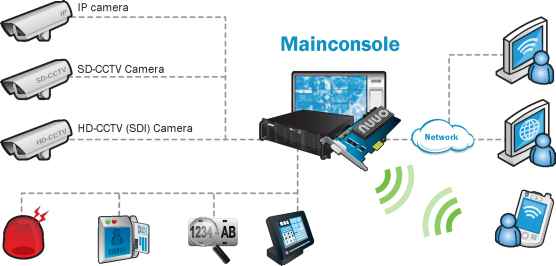

System Architecture

Remote Live Viewer (Software)

Remote Live Viewer (Web)

iViewer (Mobile App)

I/O Device Access Control LPR

Mainconsole

IP, HD-CCTV and SD-CCTV Cameras

IP+ NVR

Specification

Product Image

* The maximum number of camera connections depends on the servers hardware configuration and the total bit rate of the IP cameras. Please check NUUO Calculator on http: support.nuuo.com/calculator/

Hybrid Appliance
