Typical solutions

Distantly located structures of the ACS

USB/RS485

RS 485

GATE Server-Terminal

Z2-USB

15 Access Points)

GATE 4000

GATE 4000

ETHERNET

MOXA N Port 5130

RS 485 Remote Branch 1 (5 Access Points) 1

(Hosti)

GATE 4000

GATE 4000

GATE 4000

MOXA N Port 5130

RS 485 Remote Branch 2 (2 Access Points)

(Host 2)

GATE 4000

GATE 4000

RS 485 Remote Branch 5 (2 Access Points)

GATE 4000

Central Office Task:

Time&Attendance Control over distantly located structures.

The Network of structures consists of the Central Office (five Access Points) which controls the ACS and five remote Branches (one of which is for five Access Points and four for two Access Points).

The Desktop Reader is used for the Card Dat Base Control.

The kit includes:

-The GATE Server-Terminal Software (1) -Desktop ReaderZ2-USB(1)

- USB to RS485 interface converter (1)

- Ethernet-RS485 (MOXANport5130) interface converter (MOXANportSI 30) (1) -ControllerGATE-4000 (18)

- Readers (36)

Typical Solutions

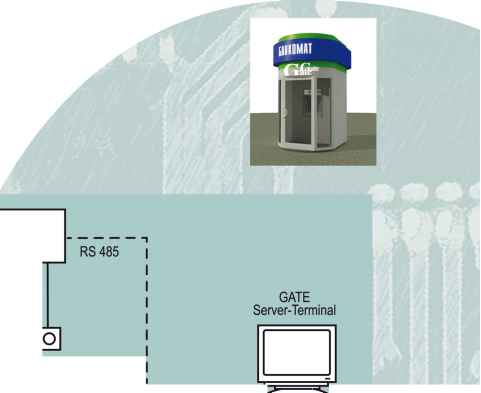

Task:

The ACS for the ATM premises to improve the security of clients during banking operations to provide vandal and tamper resistance.

Controller GATE 4000 ATM

Push-Button

USB/RS485

\ -=1

The Kit includes

Controller GATE 4000 ATM (1) Magnetic Card Reader (DC Power Input. 12 VDC) (1) Door Contact (1)Entrance/Exit Push-Button (1) Door Lock (Snap-and-Lock terminal block) (1)

Optional expansion components

GATE Server-Terminal Software (1) USB to RS485 interface converter (1)

Advanced Features:

Highly reliable, easy to install and easy to use

A budget-friendly price of the main system components

Wide range of Environmental Specifications:

Operating Temperature.....

From -30° to SOX (22° to 122°F)

xate

www.skd-gate.ru

The ACS with 1С™ Software

The GATE-Personal Special Edition Software is based on the 1С Enterprise v.8 Software platform. It designed for

the whole Data Base System to control Time&Attendance and Pass Permissions.

Installed 1С Enterprise v.8 Software

Gate-Personnel

USB/RS485

RS 485

GATE Server

GATE Server

USB/RS485

GATE 4000

GATE 4000

GATE 4000

File sharing through E-Mail and FTP

Щ USB USB/RS485

Gate-Pprsnnnpl

Щ USB

USB/RS485

RS485

GATE 4000

GATE 4000

GATE Server

RS485

GATE 4000 GATE 4000

Basic Functions

Management of the ACS

Monitoring the ACS events in Real Time

Staff Pass Permission Control: permission, edition, cancellation

Staff Access Level Management

Pass Registration in Data Base

Storing the ACS Event Data Base with Analytic Functions

Admission Office Automation

Constant and temporary passes Orders for Passes Taking Visitors Pictures-Asset Transferring Registration Visitor Data Base

Time&Attendance Control

Automated Time&Attendance Reports

Overtime, Evening and Night Shift working hours Control

Control over Late Arrival and Early Leaving of a Staff

Floating and Shift Work Control

Business Trip and Sick-List Control

Central Management of a Companys ACS and Distantly Located Structures

The Integrated ACS of the Housing Estate GATE-VIZIT

The 1 st integrated ACS for housing estate in Russia. It unites Entrance Door Intercom Network called VIZIT and

the ACS GATE for Access Control to entrances, workshops, parking and court yard territories.

It gives the unique possibility for the automated remote control over all system components from

the main automated workstation of a management company.

The System consists of two main parts:

Multiuser Video Entrance Door Intercom VIZIT v.400 Comfort Subsystem

The ACS GATE Subsystem

GATE-VIZIT Access System to Court Yard Territory and House Entrances

Parking Gate

Card Reader Territory Entrance

Card Reader Parking Exit

-mate

: VIZIT

SAFE ttawm

..........[£/ h:].............

y% Gate-4000 J /Щ^

Считыватель % \. ключей

Exit to Parking Card Reader J

1 WS

Gate

GV-420

Main Entrance Gate #1

Exit to Parking

RS485 /V.

Main Entrance Gate#3 RVS-4

GATE-4000: ttie Basic Controller GATE

GATE GV-420: ttie Basic Controller connected with VIZIT v.4000

GATE-USB: USB to RS 485422 inteface Converter

NPort:RS 485 to Ethernet Interface Converter MOXA-Nport 5130

Automated WS: PC with the GATE-Server-Terminal Software and GV-420 software module

>7

Gate I/ r--

GV-420] I NPort -!-

Territory Entrance Ш

BVD-432RCB: InterCom Request Blocl< BUD-420M: InterCom Control Block RVS-4: Splitter Video BK-2V: Switching Unit

Innovation Solutions for Transport ACS

Control and accounting of Departmental Transport, Housing Estate Parkings, Garage Co-operatives and Construction sites

The ACS GATE Transport

uses two basic types of controllers:

the basic GATE-4000 Controller

GATE-P-4000-PK Special Edition Controller (GATE-Parking with radio channel)

The Identifiers Types:

contactless proximity cards and remote keys

the remote key fob GATE-TX

the passive RFID labels and cards (EPC Global Gen2 or with EM-Marine) for RFID KeyTex-GATE long-range reader

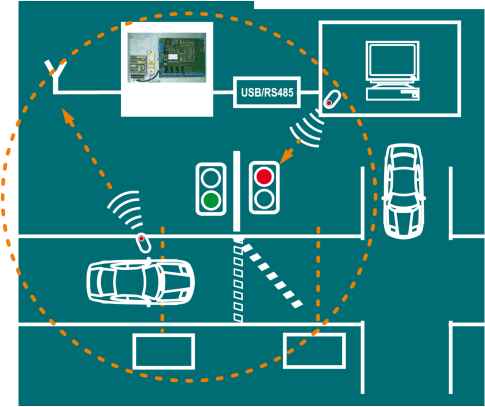

The ACS GATE-Parking for Transport

is based on the GATE-P-4000-PK Special Controller (with radio channel) and the remote keys GATE-TX

Advanced Features

the radio receiver in the controller

the receivers radius of the remote keys is up to 40 meters (131 ft)

Auxiliary inputs and outputs for peripheral equipment

the special informative mode of street lights and the secure algorithm of bidirectional movement

Car meters

the guards remote key confirmation

protected against remote keys Cale-TX duplication

the 2nd code in the remote keys

An Installation Example:

The 3-Storey Underground Parking for 315 places of the large-scale modern Onegin-Plaza Business Center in Ekaterinburg city

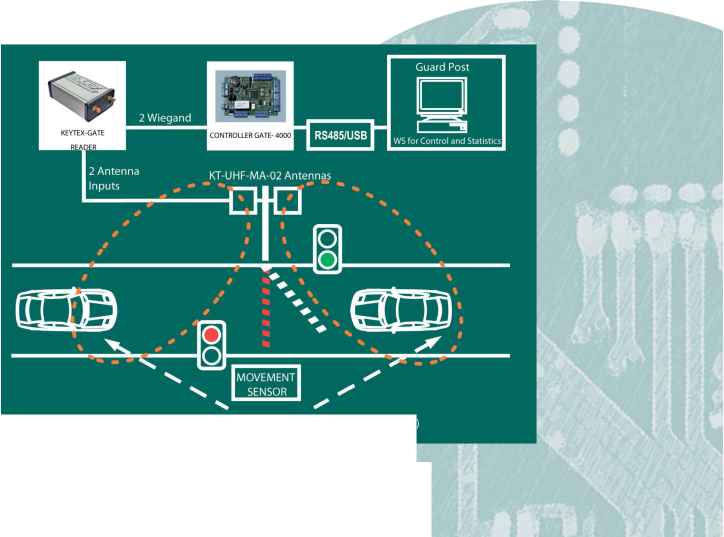

The ACS KeyTex-GATE for Transport

is based on the GATE-4000 Controller and the long-range Reader of passive RFID tags

RFID RECEIVING AREA (EPC global Gen2) UP TO 5 M (16FT

Features

Easy to use the RFID cards without touching or pressing

The RFID cards are competitively priced, battery is not necessary, impossible to duplicate, combined with Em-Marine

Economical price of the whole system with more than 200 users (than with the remote keys)

АП Installation Example

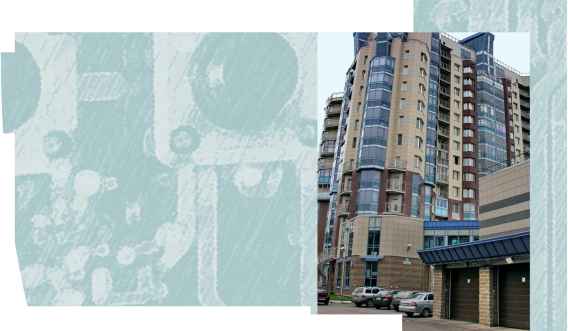

The 2-Storey Parking of the modern Caravel Housing Estate in St Petersburg

teg;.

Additional Hardware

GATE-RX Radio Channel Reader

The Code Receiver reads and transmits signals from the Remote Keys to the ACS Controller by Wiegand. The Remote Keys are similar as Access Cards for the Controller.

GATE-TX Remote Key Fob

Universal double code Remote Key is used in ACSs with the GATE-RX Reader for GATE-Parking

С

GATE USB 485/422 Interface Converter

Powered through USB and has a

galvanic isolation.

Installation Drivers are included.

U-Prox-GATE Proximity Reader

Easy-to-lnstall and easy-to-use Em-Marine&HID Reader with Wiegand 26 output, an integrated piezo buzzer and LEDs alarm and wide Read Range. Original comfortable splash and waterproof housing with the pictogram.

Z2 USB Desktop Reader

Reads IDs from Contactless Cards

and the Remote Keys for the

GATE Data Base.

It supports EM-Marine,

HIDMMifare.

The GATE Server-Terminal Software is used for operation. USB cord transmits IDs to WS and supplies a Power.

Dimensions..... 110x80x24mm

Read Range is up to 4-8 cm

RFID KeyTex-GATE Long-Range Reader

The double channel RFID long-range Reader with receiving area up to 5 m (16ft)

Supports EPC Global Gen2 passive tags (865-868 MHz).

It has Wiegand 26 output. Operating Temperature is from -40° to 55°C (-40° to 131 °F).

Supports up to 2 antennas.

Compatible Hardware and Equipment

Readers Types

RFID U-Prox-GATE, Matrix, PW, HID, Rosslare, KeyTex-GATE

Biometric.............BioSmart, FingerTec

Magnetic..............ABA-2 (12 VDC)

Technical Devices

Electromagnetic Locks......ML300,400,ALEKO,BELL,....

Electromechanical Locks... Abloy, CISA,.... Snaps Eff-Eff.O&O,....

Turnstiles PERCo,Praktika,OMA,AutomaticSystems,....

Praktika

Bars CAME, AutomaticSystems,Genius, Nice,....

The ACS GATE Installation Examples

Offices and Business Centers

The St Petersburg Office of the Russian Estate Administration of St Petersburg and Leningrad area. The Installer: Electronic Security Systems, LLC;

Onegin Plaza Business Center in Yekaterinburg city. The Installer: Security Systems Uralgaz, LLC;

The Olympic Committee Office of Russia in Moscow;

The Neftestroiproject Office in Tomsk.The Installer: GK Link, LLC

The St Petersburg Office of Guards Federal State Unitary Enterprise of Russian Ministry of Internal Affairs of St Petersburg and Leningrad area.

The Omsk City Administration of OmskVodokanal Company. The Installer: Arsenal State Company

The Energosbyt, Zarya, Olminskogo9 Business Centers in St Petersburg. The Installer: PMDTSB LLC.

The Belgorod city department of the Federal Tax Service of Belgorod area. The Installer: Security Center

The DIY Baltika Company Office in St Petersburg. The Installer: VitaTech LLC.

TheTomskgazstroy JSC Office in Tomsk City. The Installer: Link State Company

The Marmelad Media Company Office in St Petersburg

Panorama Studio Film Studio LLC in St Petersburg

The Nevsky 146 Clinic of Aesthetic Medicine in St Petersburg. The Installer: PMDTSB LLC.

The Laboratory Of Indication Facilities JSC Office in St Petersburg. The Installer: Electronic Security Systems, LLC

The MINIMAX LLC Office in St Petersburg.The Installer: PMDTSB LLC.

Mediasphera Internet Agency in St Petersburg. The Installer: Electronic Security Systems, LLC

Enterprises

Olympstroy State Corporation Sites in Sochi city. Moscow Brewing Company .The Installer: Astero LLC.

Ismeron Production Corporation in St Petersburg. The Installer: Electronic Security Systems, LLC Ortalyk Mining Enterprise LLP in Almaty, Kazakhstan

Cronos-Trade Scientific Production Company in Omsk. The Installer: Arsenal State Company Uralchimmash in Yekaterinburg city. The Installer: Metal Project LLC.

ABS Russ Enterprise of electrical equipment in St Petersburg. The Installer: Electronic Security Systems, LLC MMC Borisov Plant in Belgorod area. The Installer: Security Center LLC Cherkashin & Co CMG in Yekaterinburg city. The Installer: Metal Project LLC. Krasnodar Compressor Plant

Tchebekin Chalk Plant in Belgorod city. The Installer: Security Center LLC

Scyphian Furniture Factory in Leningrad area, St Petersburg. The Installer: Electronic Security Systems, LLC

Housing Estates

Tovarischesky 32, Svetlanovsky 11SBuilding 26,0zerky 1 HOAs in St Petersburg .The Installer: InfoTech Service LLC. Parkings and Entrances of ATSG DEZ Housing Estates in Moscow. The lnstaller: videoGuard LLC.

Live Spring on Engels prospect. Golden Harbor on Primorsky prospect, Yachtenaya st. Avant-garde on Avangardnaya st, Gragdanka City 1-2 on Nauky pr., Raduga on Small Kashtanovaya st, Zagreb br, Petrograd Standard on Petrozavodskaya st, Olympic Village on Vyazovaya st Housing Estates in St Petersburg. The Installer: InfoTech Service LLC. Soglasie HOA Sites in Yekater nburg City

Beresta Palace Hotel in Great Novgoroct. The Installer: Russian Partner LLC.

Trade & Culture

Grand Canyon Ice Arena in St Petersburg .The Installer: Metalink LLC. Petrovsky Stadium in St Petersburg

M.Video Management in Omsk city. The Installer: Arsenal State Company Metrika Hipermarket in St Petersburg

City Center Trade-Entertainment Complex in Almaty city, Kazakhstan M.Video shops in Yekaterinburg city

Chance shops in Old Oskop city. The Installer: Security Center LLC Omega Group Holding in Yekaterinburg city

Samotsvety Jewelry Shop in Belgorod. The Installer: Security Center LLC.

Today-Press-Voronezh ZAO in Voronezh

Sparta Sport Club in St Petersburg. The Installer: PMD TSB LLC.

Grand Trade House LLC in St Petersburg. The Installer: Electronic Security Systems, LLC

Transport & Technolo

Zheldorremmash Repair workshops JCS: Astrakhan TRZ, Ekaterinburg ERZ, Novosibirsk ERZ, Ussuriisk ERZ, Yaroslavl ERZ. The Installer: R.V.S. LLC Parking of Caravel Housing Estate in St Petersburg .The Installer: Vital Electronics LLC

Karelia Business Hotel Parking and Reception in St Petersburg. The Installer: FOSS-KM LLC and IT Technologies XXI century LLC.

SO EEC JSC Branch in Omsk city. The Installer: Arsenal State Company

KurganskGroup Water Supply in Krasnodar area.

The Mega-Auto Holding Halls and Repair Shops in St Petersburg

Kazahtelecom JSC in Kazakhstan

Tele2 Mobile Phone Operator in Krasnodar

The Departmental Fuel-Filling Stations in Shushary, Ust-Luga, Frundze district in St Petersburg. The Installer: TO Tri-E LLC The Renault, Honda, Suzuki (Autoforum), Ufa Rolf Automobile Sales Centres in St Peterburg Car Owener Start Garage-Building Cooperative in Moscow

AutoStroiService Garage Cooperative LLC in St Petersburg. The Installer: Electronic Security Systems, LLC

Uralsib Bank Branch in Omsk. The Installer: Arsenal State Company

St Petersburg Bank Branch in Kaliningrad

State Central Bank of Russia Sites in Smolensk area.

Network Oil Bank AB in Kaliningrad

Baltic Development Bank Branch in St Petersburg. The Installer: VitaTech LLC. International Bank of Azerbaijan MBA in Moscow

Educational Establishment

Music school 71 in Moscow. The Installer: Systems of Control LLC

Technical Schools in Tomsk city: Rail Road Transport, Automobile Road, Communal Construction, Agricultural, Trade-Economical, Forestry Engineering. The Installer: Link State Compony LLC.

College of Transport Construction in Omsk city. The Installer: Arsenal State Company Kuban State University in Krasnodar. The Installer: Remix-Terma LLC

Gate Training Room in St Petersburg University of TV Communications named after Prof Bonch-Bruevich

Tomsk City Colleges: Industrial, Traae-Economical, Industrial-Humanitarian. The Installer: Link State Company LLC.
