The system requirement depends on the number of camera connections and the total bit rate of the IP cameras. Please refer Appendix - Minimum Hardware Requirement or check NUUO Calculator on http: support.nuuo.com/calculator/

Caution

The electronic components within the unit are sensitive to damage from Electro-Static Discharge (ESD). Please take precautions at all times when handling the unit or its sub-assemblies.

Proper Surge solution is needed for outdoor application. It provides protection from damaging transient voltage surges and spikes.

Hardware Installation

Stepi: Insert the card onto an empty PCI slot. Connect the Audio/Video

Cable to the connector in the same color. Note: You need to power down the PC before you insert the card.

Step 2: Turn on your PC and start Windows.

Step 3: Insert the included Software CD into CD-ROM.

Step 4: Refer the section Driver Installation on page 18 to install driver.

Step 5: After driver is installed, restart your PC.

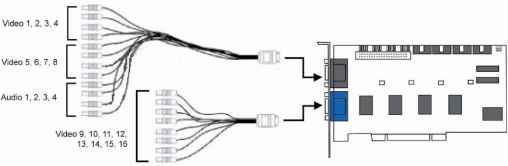

Connect the Audio/Video Cable

Note: for G3-3000 series, audio channels are located at 1, 2, 3, 4. Optional I/O Card: refer to the figures on the following pages. Step 1: Fix the IO card onto your PC.

Step 2: Connect the Capture Card and the I/O Card with an included ribbon cable (2.54mm IDC cable).

Note: The default configuration of blue slide switch on I/O Card as below.

s I 9 s i £ г I

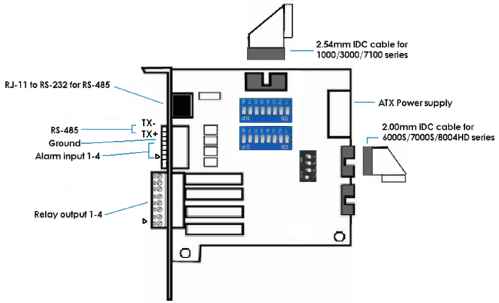

G3-3000 Series Capture Card

Connect to IO board (2.54mm IDC cable)

I/O Card

RJ-nto RS-232 for RS-4B5

2.54mm IDC cable tor 1000/3000/7100 series

RS-4a5 -Ground-

Alarm inpun-4-

Relay output 1-4-

□

llllllll

ATX Powersupply

2.Q0mm IDC cable for - A0O0S/70O0S/8O04HD series

Maximum I/O Cards support for G3-3016

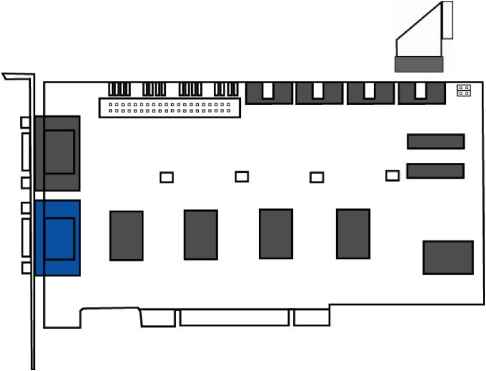

G3-1000 Series Capture Card

Connect to IO board (2.54mm IDC cable)

I/O Card

G3-card Watchdog wire Installation

6000S/7000S SERIES

Product Specification

Video Resolution

NTSC: 176x120; 352x240; 704x480

PAL: 176x144; 352x288; 704x576

Compression Format System Requirement

Hardware Compression H.264

The system requirement depends on the number of camera connections and the total bit rate of the IP cameras. Please refer Appendix - Minimum Hardware Requirement or check NUUO Calculator on http: support.nuuo.com/calculator/

Caution

The electronic components within the unit are sensitive to damage from Electro-Static Discharge (ESD). Please take precautions at all times when handling the unit or its sub-assemblies.

Proper Surge solution is needed for outdoor application. It provides protection from damaging transient voltage surges and spikes.

Hardware Installation

Step1: Insert the card onto an empty PCI-e slot. Connect the Audio/Video Cable to the connector.

Note 1: The audio input connectors ore with red wires and marked of A on them (such as A1/9 ); the video input connectors are with black wires and marked of V (such as V8/16 ).

Note 2: You need to power down the PC before you insert the card.

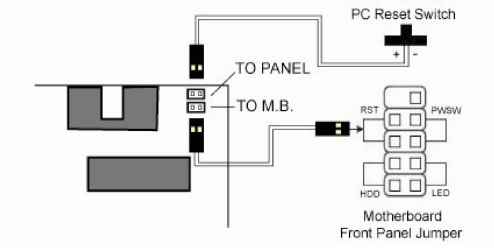

Step 2: Connect the Watchdog wire to the reset connector on the main board.

Note: With the Watchdog Wire connected, the system will be restarted if any abnormal conditions.

Step 3: Turn on your PC and start Windows.

Step 3: Insert the included Software CD into CD-ROM.

Step 4: Refer the section Driver Installation on page 18 to install driver.

Step 5: After driver is installed, restart your PC.

Optional I/O Card: refer to the figures on the following pages.

Step 1: Fix the IO card onto your PC.

Step 2: Connect the Capture Card and the I/O Card with an included ribbon cable (2.00mm IDC cable).

Note 1: The default configuration of blue slide switch on I/O Card as below.

Note 2: If you only use one I/O card to connect with one of 6000S/7000S cards, please make sure the configuration of the black slide switch as below.

e 9 s > с г I

e i 9 E к с г I

Maximum optional I/O Card support:

6000S/7000S can support maximum 4 I/O cards. Please refer to figures on the following pages.

6000S/7000S Series Capture Card

Watchdog wire

Audio/Video cable

Mainboard

H=l Reset

Connect to IO board (2.00mm IDC cable)

To PCI-eslot

I/O card
